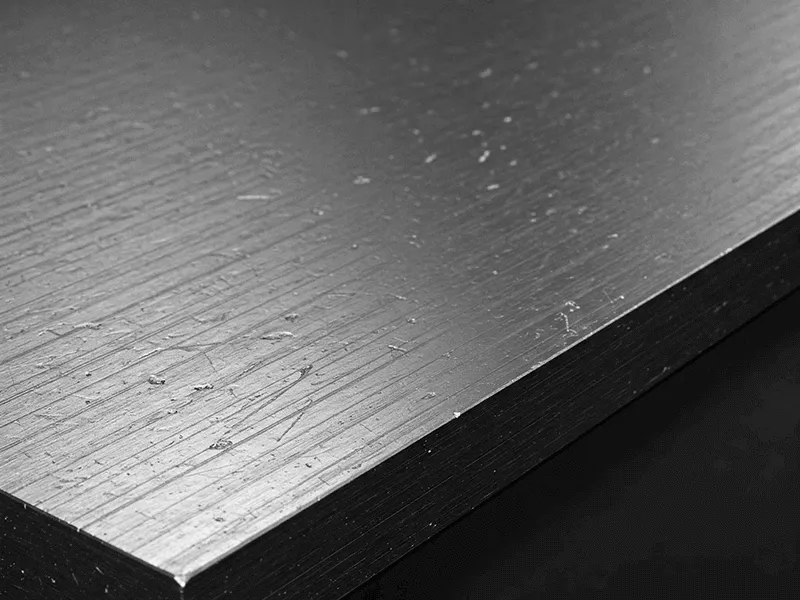

ASTM A516 Gr.70N vs. Mild Steel: A Cost & Value Analysis Guide
Contractors and procurement teams frequently ask: "Why should we pay a premium for Specialty Steel like ASTM A516 when it looks exactly like regular mild steel?" The answer doesn't lie in the appearance, but in "life-saving structural integrity and long-term cost efficiency." This article by Trinity Dynamic explores the critical differences that make Carbon Steel Boiler Plates irreplaceable in high-pressure applications, and why they are worth every penny.
1. The Hidden Power of Tensile Strength
Standard mild steel plates (like SS400 or A36) are engineered for "general structural applications" that bear static loads. In contrast, ASTM A516 Grade 70N is a high-tensile steel born to handle dynamic expansion:
- Mild Steel (SS400): Focuses on static weight-bearing. If subjected to a sudden pressure surge, the rigid structure is highly susceptible to tearing.
- A516 Gr.70N: Designed to safely "expand and contract" under massive internal pressure and thermal stress without developing micro-cracks, especially around weld zones.
2. Notch Toughness: The Cost of Safety
The primary weakness of standard steel is that it becomes as brittle as glass when temperatures drop or when subjected to severe environmental shifts. For Pressure Vessel Steel (70N standard), strict Impact Testing is mandated:
The Normalized (N) heat treatment process ensures a refined, uniform grain structure. This grants the steel exceptional "Toughness," allowing it to absorb intense vibrations and impact. This specialized, energy-intensive heat treatment is the primary driver behind the "price difference" between specialty steel and commercial mild steel.
Cost-Value Comparison: Mild Steel vs. A516 Specialty Steel
When evaluating costs, procurement teams must look beyond the Initial Material Cost and consider the Total Lifecycle Cost and Risk Mitigation:
| Cost Consideration | Standard Mild Steel (e.g., SS400) | Specialty Steel (A516 Gr.70N) |
|---|---|---|
| Initial Material Price | Lower | Higher (approx. 20-40% premium) |
| Maintenance & Repair Costs | High (Prone to weld cracking under pressure) | Extremely Low (Designed for long-term durability) |
| Safety Certification (PVQ) | Not guaranteed for pressure applications | 100% International Standard Compliance |
| Risk of Project Audit Failure | Extremely High (If used for pressure vessels) | Zero Risk (Backed by verified MTCs) |
Conclusion: The True Cost of Using the Wrong Steel
Substituting pressure vessel steel with commercial structural steel to "save on material budget" is one of the most dangerous risks in engineering. Not only does it violate strict occupational safety laws, but it also risks catastrophic explosions due to metal fatigue. A failed audit means the entire structure must be dismantled and rebuilt.
Therefore, investing in ASTM A516 Grade 70N from the very beginning is the most "cost-effective" decision a project manager can make to prevent massive future liabilities.
