Aluminium Coil & Plate (Grades 1100, 5052) Factory Price
Premium Aluminium Coil & Plate - ASTM B209
- Available Grades: AA1100 (Excellent Formability) & AA5052 (Marine Grade)
- Thickness Range: 0.35 mm – 6.0 mm (Extensive ready-to-ship stock)
- Standard Widths: 1000, 1219 (4 ft), 1524 (5 ft), and 2000 mm available
- Service Center: Custom Coil Slitting, Shearing, and Nationwide Delivery
3x lighter than steel, naturally rust-proof. Ideal for architectural signage, marine fabrication, and truck bodies.
Industrial Material

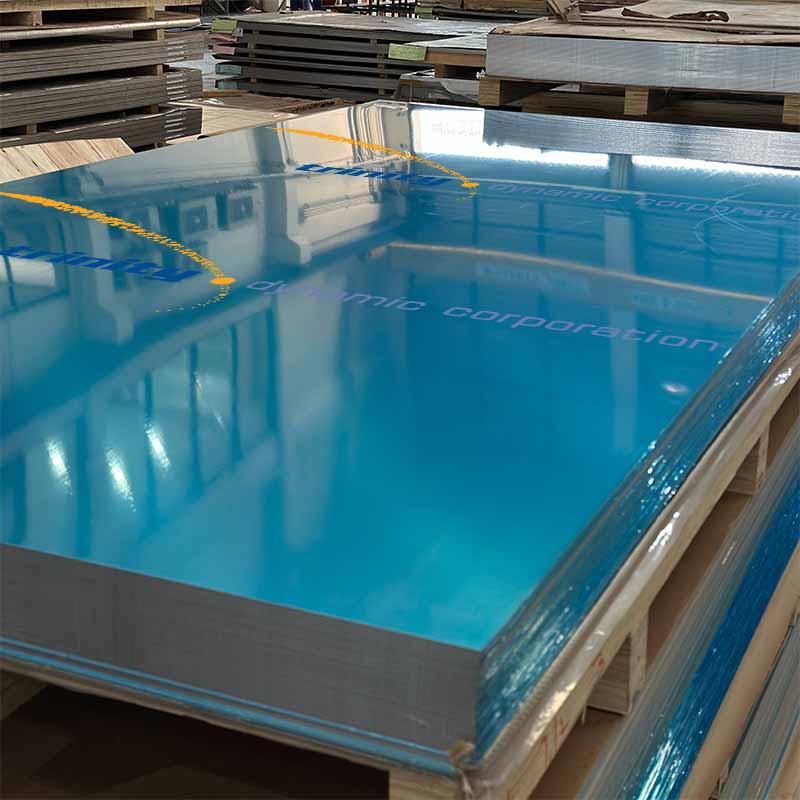

The Ultimate Lightweight & Rust-Proof Solution: Aluminium Coil and Plate
For engineering projects where reducing structural load is critical, or in environments plagued by constant moisture, Aluminium is the absolute premier choice. Weighing approximately three times less than carbon steel or stainless steel, aluminium dramatically reduces transportation costs and structural fatigue. Furthermore, aluminium naturally generates a microscopic oxide film when exposed to air, rendering it completely immune to red rust without the need for protective painting.
At Trinity Dynamic, we source our Aluminium Coils and Plates from world-class metallurgical plants. We guarantee "Full-Spec" dimensional accuracy and clean, scratch-free surfaces. This superior material consistency ensures smooth CNC cutting, bending, and deep-drawing processes, significantly lowering defect rates in your manufacturing line.
Engineering Grade Comparison: AA1100 vs. AA5052
Selecting the correct alloy is vital for production efficiency and long-term durability. Here is a technical breakdown:
| Property | Grade 1100 (Commercial Pure) | Grade 5052 (Marine Grade) |
|---|---|---|
| Material Composition | 99.0% minimum pure Aluminum (Soft & highly ductile) | Alloyed with Magnesium (Significantly higher strength) |
| Formability / Bending | Excellent (Bends to 90 degrees easily without cracking) | Moderate to Good (Can be bent but has higher spring-back) |
| Corrosion Resistance | Very Good in general atmospheric environments | Exceptional! (Highly resistant to saltwater and marine environments) |
| Primary Applications | Signage, deep-drawn parts, HVAC ducts, architectural cladding. | Shipbuilding, fuel tanks, truck bodies, offshore platforms. |
Technical Specifications
Standard: ASTM B209 / ASME SB-209
Available Alloys: AA1050, AA1100, AA3003, AA3105, AA5052, AA5083, AA5251, AA6061
Typical Mechanical Properties
| Alloy / Temper | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
|---|---|---|---|
| 1100-H14 | 110 - 145 | ≥ 95 | ≥ 9 |
| 5052-H32 | 210 - 260 | ≥ 150 | ≥ 10 |
Comprehensive Stock & Weight Chart: Aluminium Coil & Plate
| Aluminium Coil & Plate Stock List | ||||
|---|---|---|---|---|
| Thickness (mm) | Width x Length (mm) | |||
| 1,000 x 2,438 | 1,219 x 2,438 | 1,524 x 3,048 | 2,000 x 6,000 | |
| Estimated Weight (KGS) | ||||
| 0.35 | 2.36 | 2.87 | 4.49 | 11.59 |
| 0.40 | 2.69 | 3.28 | 5.13 | 13.25 |
| 0.45 | 3.03 | 3.69 | 5.77 | 14.9 |
| 0.50 | 3.36 | 4.1 | 6.41 | 16.56 |
| 0.55 | 3.7 | 4.51 | 7.05 | 18.22 |
| 0.60 | 4.04 | 4.92 | 7.69 | 19.87 |
| 0.70 | 4.71 | 5.74 | 8.97 | 23.18 |
| 0.80 | 5.38 | 6.56 | 10.26 | 26.5 |
| 0.90 | 6.06 | 7.38 | 11.54 | 29.81 |
| 1.00 | 6.73 | 8.2 | 12.82 | 33.12 |
| 1.20 | 8.07 | 9.84 | 15.38 | 39.74 |
| 1.40 | 9.42 | 11.48 | 17.95 | 46.37 |
| 1.50 | 10.09 | 12.3 | 19.23 | 49.68 |
| 1.60 | 10.77 | 13.12 | 20.51 | 52.99 |
| 1.80 | 12.11 | 14.76 | 23.08 | 59.62 |
| 2.00 | 13.46 | 16.41 | 25.64 | 66.24 |
| 3.00 | 20.19 | 24.61 | 38.46 | 99.36 |
| 3.20 | 21.53 | 26.25 | 41.03 | 105.98 |
| 4.00 | 26.92 | 32.81 | 51.28 | 132.48 |
| 4.50 | 30.28 | 36.91 | 57.69 | 149.04 |
| 6.00 | 40.37 | 49.22 | 76.92 | 198.72 |
✓ = Ready in Stock | We operate as a full-service center offering Coil Slitting and custom plate Shearing based on your specific requirements.
Common Industrial Applications
- Signage & Advertising: Dimensional letters, billboards, and light boxes (Grade 1100 is highly preferred due to its lightweight and high formability).
- Marine & Shipbuilding: Speedboat hulls, marine decking, and offshore fuel tanks (Grade 5052 is mandatory for its exceptional saltwater resistance).
- HVAC & Refrigeration: Air conditioning cabinets, compressor housings, and thermal heat sink fins.
- Automotive & Transport: Truck body paneling, cargo roofing, and lightweight automotive components.
